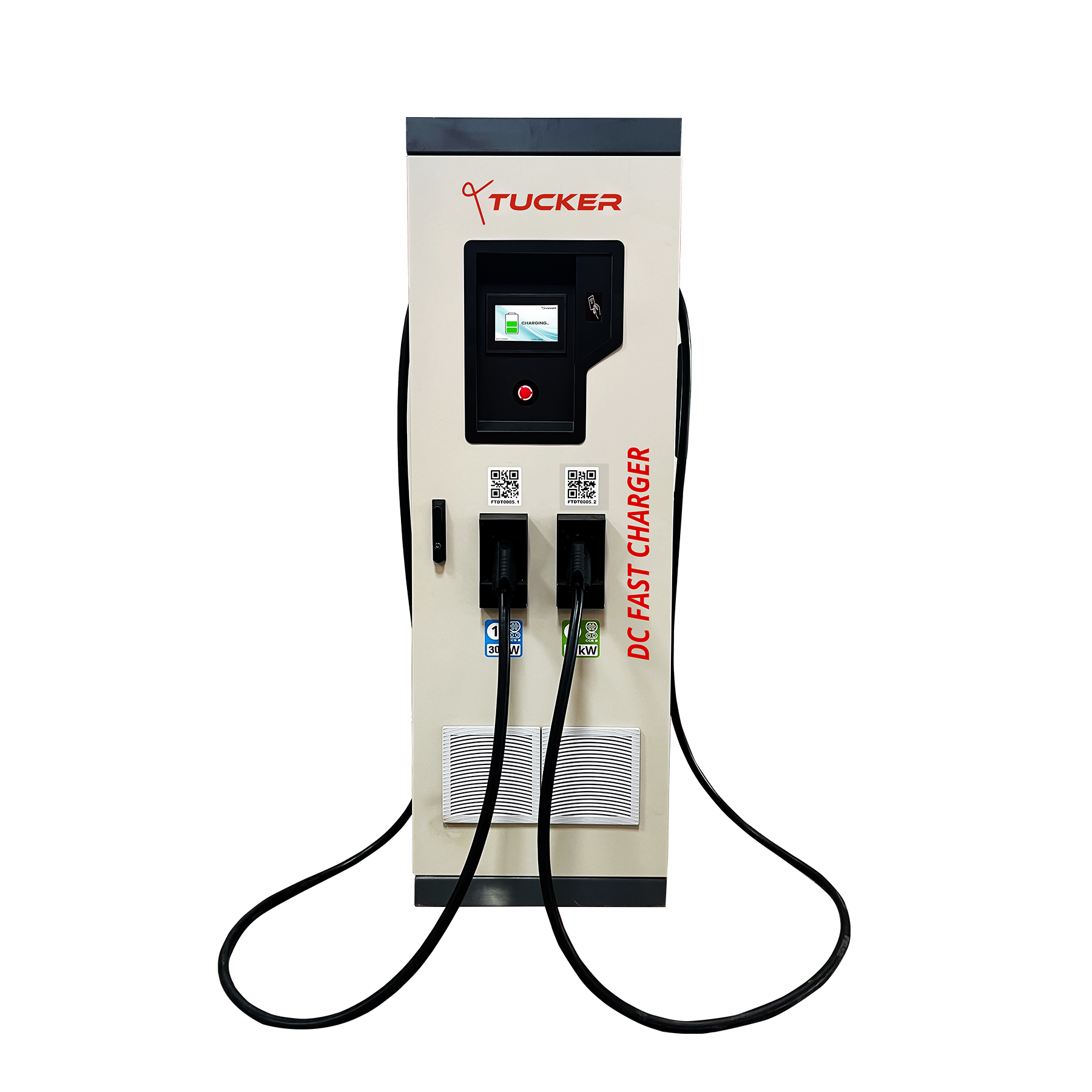

DC FAST CHARGER DUAL GUN
Wattage : 30kW to 350kW
Experience ultimate efficiency with our DC Fast Charger, featuring a dual-gun configuration that allows simultaneous charging of two vehicles. By splitting power evenly, it maximizes charging capacity, reduces waiting times, and increases flexibility for multiple users. Enjoy enhanced safety with automatic error detection and charging cut-off. Our app enables users to locate and monetize our charger, earning money per hour, with customizable power options from 30kW to 350kW. Plus, easily monitor vital stats like voltage, current, time consumption, and unit consumption on our intuitive touch display.
AC NOMINAL INPUT
- Input Voltage : 440V ±10%
- Input Current : 170A Max
- Input Frequency : 50 Hz ± 5%
- Input Power :30kW to 350kW
AC Nominal Output
- Output Voltage : 440V ± 10%
- Output Current : 240A Max
- Over Current Limit : 245A
- Output Power : 30kW to 350kW
Technical Details
| Support Language | English |
| Charging Option | Standalone |
| Visual Indication | Presence of input supply, Error indicator, State of charge |
| User Authentication | RFID / QR Scan / App-Based |
| User Interface | App |
| Safety Parameters | Over Current, Over/Under Voltage, Surge Protection, Ground Fault, Over Temperature, Leakage Current Detection, Emergency Detection |
| EVSE to EVCC | IEC61851-1 Annex A |
| EVSE to CMS | Wi-Fi / 4G / OCPP v1.6J |
| Ingress Protection | IP 56 |
| Weight | 2 kg (Approx.) |
| Chargeable Devices | EV Bikes, Three-wheelers, EV Cars |
| Connectivity | GSM | Wi-Fi | Ethernet |
| Altitude | Up to 2000 meters |
| Humidity | 5% to 95% (Non-condensing) |
| Energy Meter | Inbuilt energy meter with 1% accuracy |
