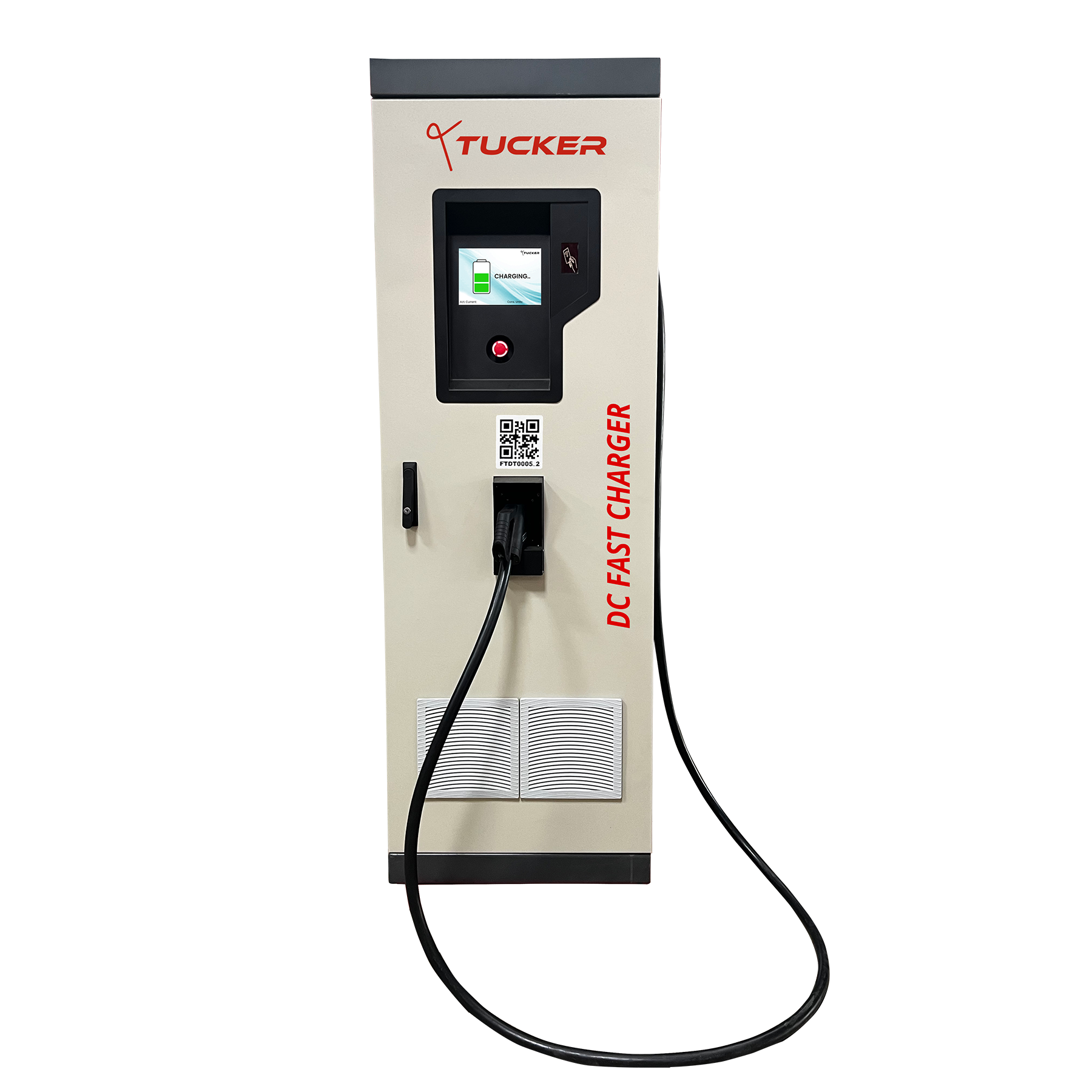

DC FAST CHARGER SINGLE GUN
Wattage : 20kW to 120kW
Boost your EV charging experience with our DC Fast Charger, featuring a single-gun CCS2 configuration. Easily start or stop charging via QR code using the Tucker app or RFID card, and enjoy added safety with the emergency stop button and touch display monitoring. Plus, our app allows you to locate our charger, share it with the public, and earn money per hour. With power options ranging from 20kW to 120kW, choose your speed and significantly reduce charging time compared to AC chargers
AC NOMINAL INPUT
- Input Voltage : 440V ±10%
- Input Current : 170A Max
- Input Frequency : 50 Hz ± 5%
- Input Power :20-120 kW
AC Nominal Output
- Output Voltage : 440V ± 10%
- Output Current : 240A Max
- Over Current Limit : 245A
- Output Power : 20-120 kW
Technical Details
| Support Language | English |
| Charging Option | Standalone |
| Visual Indication | Presence of input supply, Error indicator, State of charge |
| User Authentication | RFID / QR Scan / App-Based |
| User Interface | App |
| Safety Parameters | Over Current, Over/Under Voltage, Surge Protection, Ground Fault, Over Temperature, Leakage Current Detection, Emergency Detection |
| EVSE to EVCC | IEC61851-1 Annex A |
| EVSE to CMS | Wi-Fi / 4G / OCPP v1.6J |
| Ingress Protection | IP 56 |
| Weight | 2 kg (Approx.) |
| Chargeable Devices | EV Bikes, Three-wheelers, EV Cars |
| Connectivity | GSM | Wi-Fi | Ethernet |
| Altitude | Up to 2000 meters |
| Humidity | 5% to 95% (Non-condensing) |
| Energy Meter | Inbuilt energy meter with 1% accuracy |
