3.3kW OCPP AC Chargers
Wattage : 3.3kW

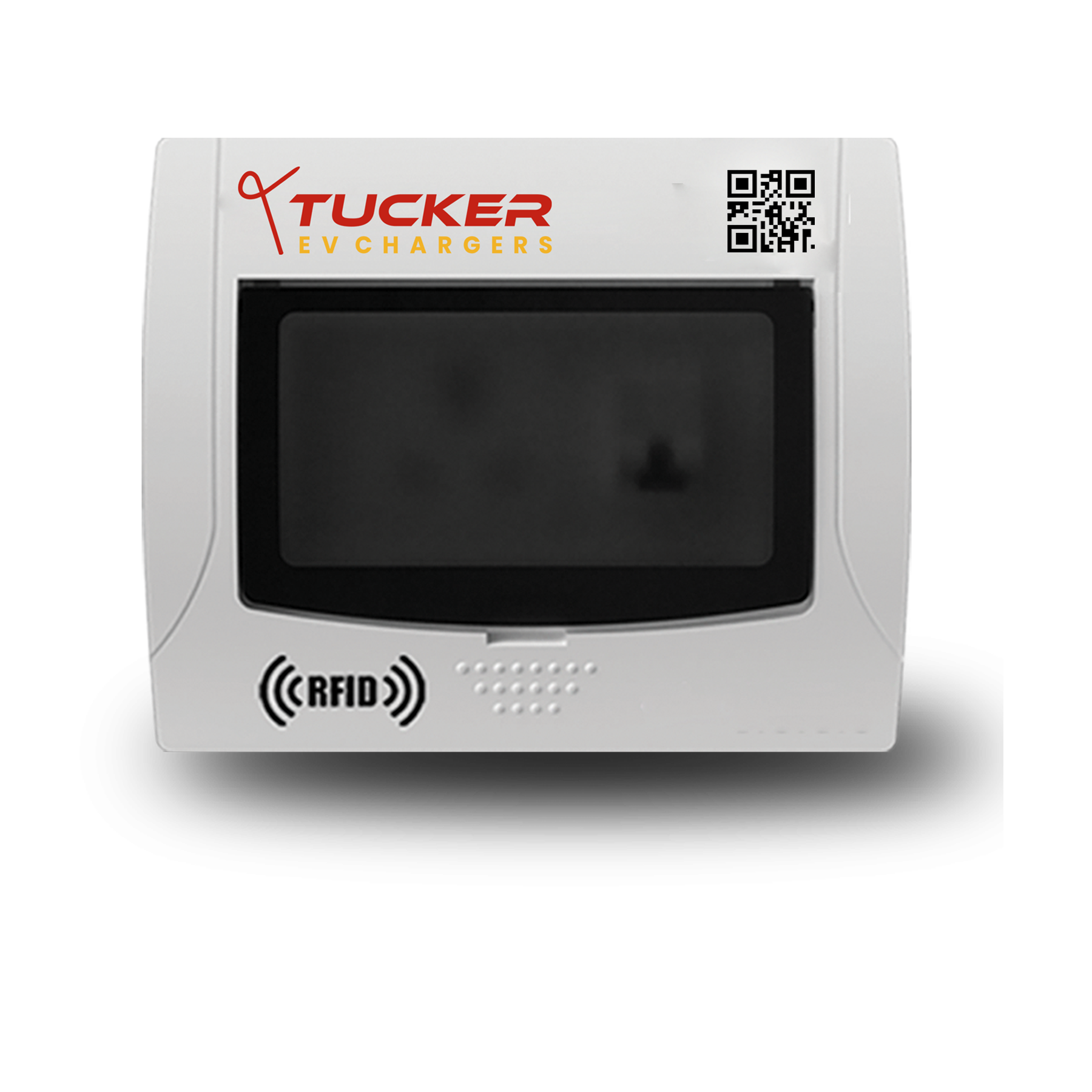

Our 3.3kW OCPP AC Charger, offering flexible solutions via TUCKER app or RFID card. Enjoy real-time monitoring of energy usage, voltage, current, and consumption through an Indian standard 16A socket and integrated energy meter. Plus, choose your preferred connectivity mode from 2G, 4G, and WIFI for a personalized experience, making operation effortless and convenient.
AC NOMINAL INPUT
- Input Voltage : 220V ± 10%
- Input Current : 15A Max.
- Input Frequency : 50 Hz ± 2%
- Input Power : 3.3kW
AC Nominal Output
- Output Voltage : 220V ± 10%
- Output Current : 15A Max.
- Over Current Limit : 17A
- Output Power : 3.3kW
General Specifications
- On/Off Switching Plug Unit with Power Consumption Measurement.
- IS-1293 Socket with Neutral, Live and Protective Earth.
- OCPP 1.6J (Upgradable to OCPP 2.0)
- GSM, Wi-Fi
- Over Voltage Protection, Under Voltage Protection, Over Current Protection, Sage Protection, Short Circuit, Over Temperature, Isolation Monitoring and Earth Leakage Current Protection.
- Presence of Input Supply, Error Indication and Network Connection
- Inbuilt Energy Meter with 1% Accuracy.
- QR Scan/ Smartphones/ RFID
