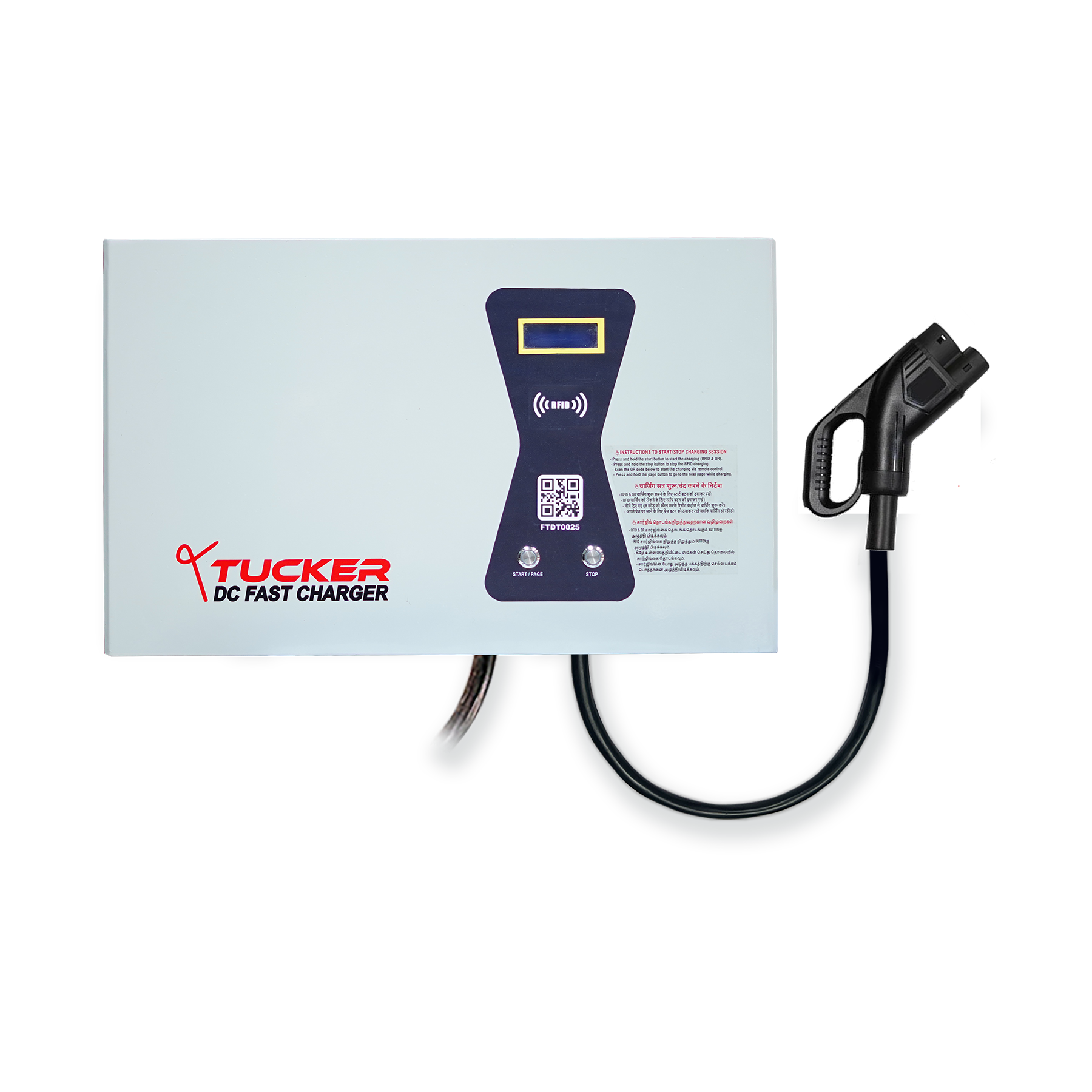

DC FAST CHARGER WALLBOX
Wattage :60-240 kW
Discover the DC WallBox Charger, a compact and cost-effective solution for EV charging. Featuring a built-in emergency stop and Ethernet communication, it prioritizes safety and connectivity. Users can effortlessly start or stop charging via RFID, QR code, or the Tucker app. With a single-gun configuration and user-friendly app, monitoring vital stats like voltage, current, time consumption, and unit consumption is a breeze on our touch display. Choose from a range of 60-240 kW to suit your needs. Plus, our app allows you to locate, share, and monetize our charger, earning money per hour by making it publicly available.
AC NOMINAL INPUT
- Input Voltage : 230V ±10%
- Input Current : 60A Max
- Input Frequency : 20A
- Input Power :60-240 kW
AC Nominal Output
- Output Voltage : 230V ±10%
- Output Current : 60A Max
- Over Current Limit : 20A
- Output Power : 60-240 kW
Technical Details
| Support Language | English |
| Charging Option | Standalone |
| Visual Indication | Presence of input supply, Error indicator, State of charge |
| User Authentication | RFID /QR Scan App-Based |
| User Interface | App |
| Safety Parameters | Over current, Over Voltage, Under Voltage, Surge Protection Ground Fault, Over Temperature Leakage Current Deduction |
| EVSE to EVCC | IEC61851 - 1 Annex A |
| EVSE to CMS | Ethernet |
| Ingress Protection | IP 56 |
| Weight | 50 kg / Approx |
| Chargeable Devices | EV Cars |
| Connectivity | Ethernet |
| Altitude | Up to 2000 meters |
| Humidity | 5% to 95% (Non-condensing) |
| Energy Meter | Inbuilt energy meter with 1% accuracy |
| Humidity | 5% to 95 % Non condensate |
