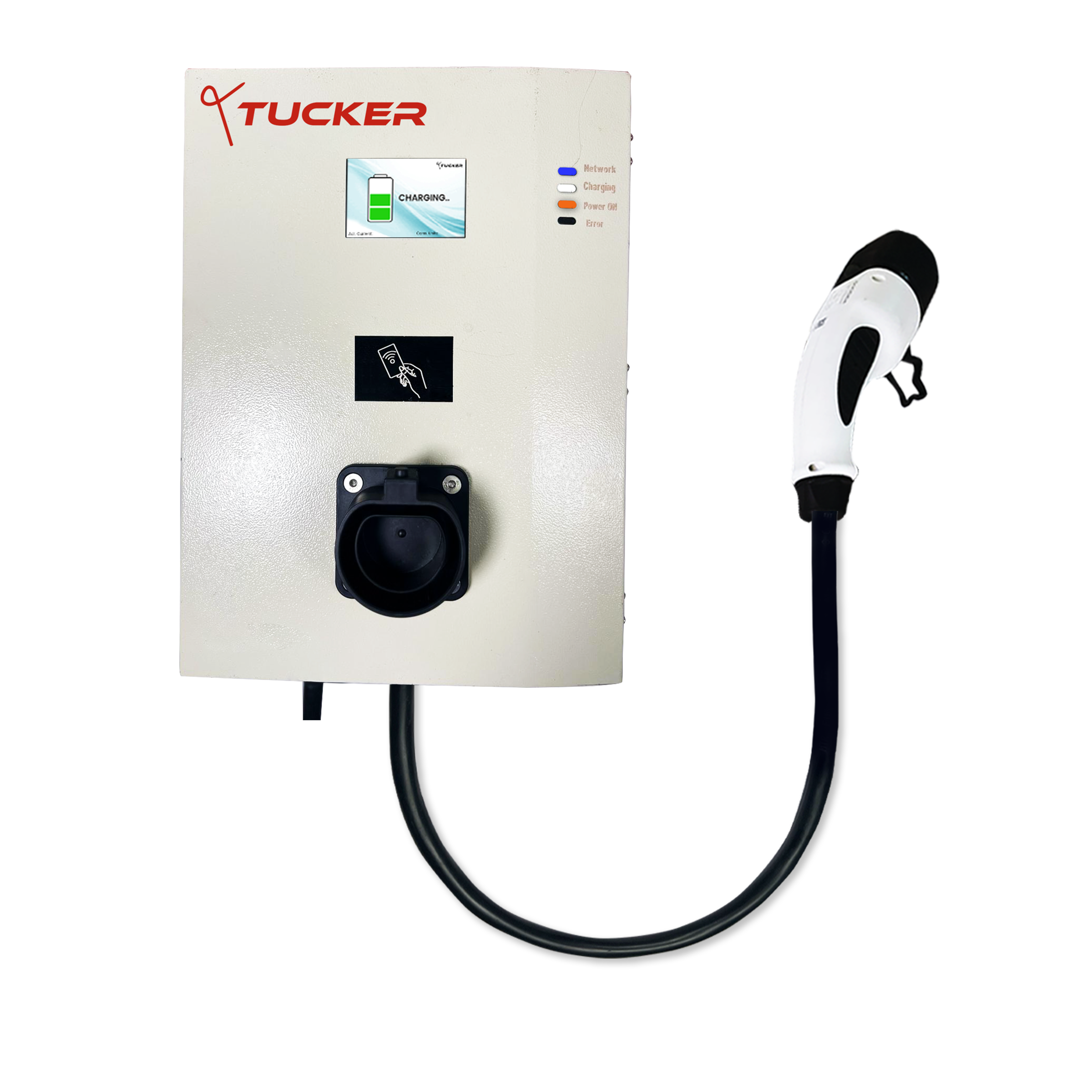

Type2 AC EV Charger
Wattage : 7kw/11kW/22kW

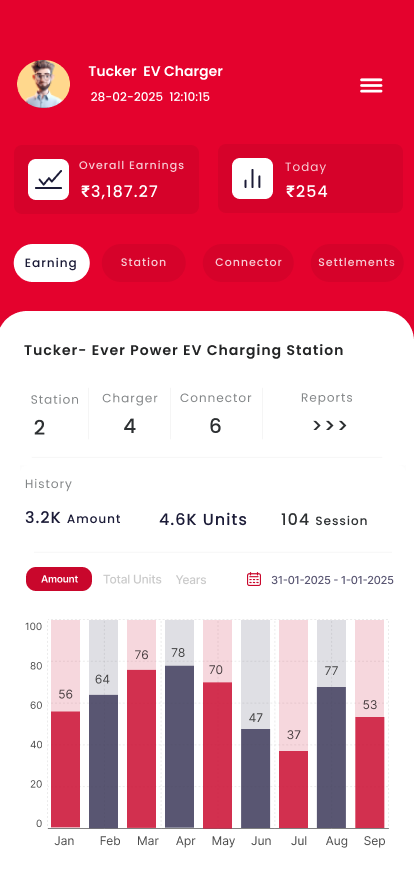

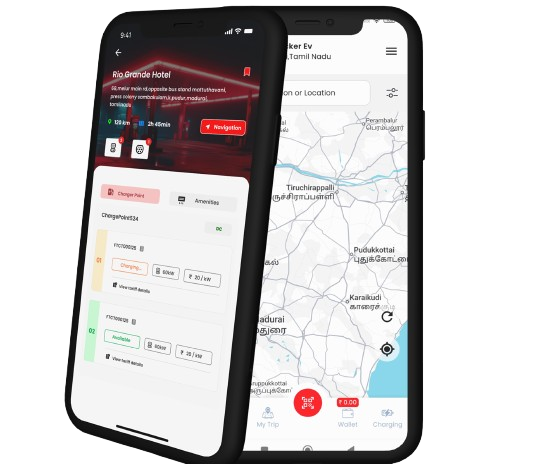

Experience convenient EV charging with our Type 2 AC 7.4 kW charger. Start or stop charging with ease using an RFID card or QR code via the TUCKER APP. Our user-friendly app and touch display allow you to monitor vital stats like voltage, current, time consumption, and unit consumption. Plus, enjoy enhanced safety with the built-in emergency stop button and seamless communication via GSM, WiFi, and Ethernet - perfect for light-duty EV charging needs
AC NOMINAL INPUT
- Input Voltage : 230V ±10%
- Input Current : 32A Max
- Input Frequency : 50 Hz ± 5%
- Input Power :7kW/11kW/22kw
AC Nominal Output
- Output Voltage : 220V ± 10%
- Output Current : 32A Max
- Over Current Limit : 35A Max
- Output Power : 7kW/11kW/22kw
Technical Details
| Support Language | English |
| Charging Option | Standalone |
| Visual Indication | Error indicator, Presence of input supply, State of charge |
| User Authentication | RFID / QR Scan / App-Based |
| User Interface | App |
| Safety Parameters | Over current, Over/Under Voltage, Surge, Ground Fault, Over Temperature, Leakage Current Detection, Emergency Detection |
| EVSE to EVCC | IEC61851-1 Annex A |
| EVSE to CMS | Wi-Fi / 4G / OCPP v1.6J |
| Ingress Protection | IP 56 |
| Weight | 2 kg (Approx.) |
| Chargeable Devices | EV Bikes, Three-wheelers, EV Cars |
| Connectivity | GSM | Wi-Fi | Ethernet |
| Altitude | Up to 2000 meters |
| Humidity | 5% to 95% (Non-condensing) |
